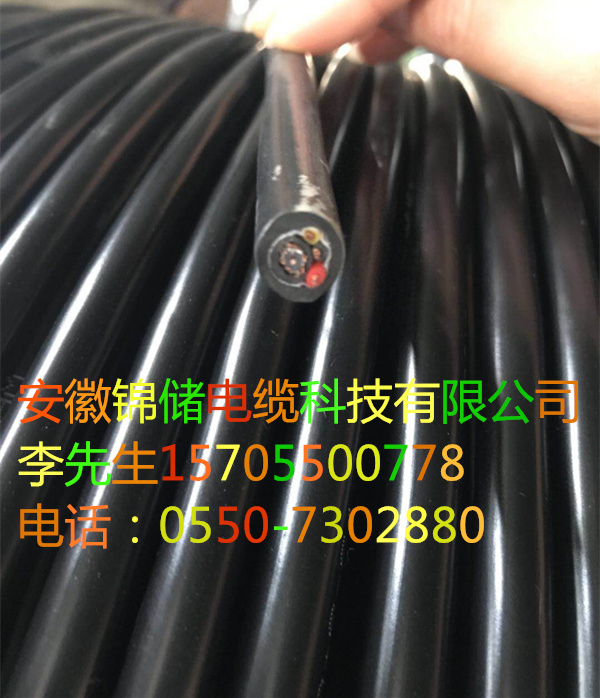

CSSR/SA 1*120 CSSR/S 1*150 CSSR/SA 1*70
商品名稱：CSSR/SA 1*120 CSSR/S 1*150 CSSR/SA 1*70
productmiaoshu：產品用途Applicationhttp://www.ahwbtzdl.com/http://m.pizzafun.cn/本產品適用于河海各種船舶及海上石油平臺等水上建筑的電力、照明和一般控…
- 添加時間：2020-07-18 15:07:59
- 瀏覽：
產品描述：
產品用途Applicationhttp://www.ahwbtzdl.com/http://m.pizzafun.cn/
本產品適用于河海各種船舶及海上石油平臺等水上建筑的電力、照明和一般控制裝置之用。對冶金、化工、電力等工礦企業亦可同樣適用。
The cable is intended for electric power, lighting and general control system of shipboard, oil platform and offshore building etc. It is also available to metallurgical industry, chemical works, power plant and mining enterprises etc.
產品標識Marking
絕緣線芯應采用分色或印數字代碼以示識別，并符合G B/T6995.5-2008的規定。
Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.5-2008.
護套顏色為黑色，并打印生產廠名、制造年份、型號、規格、電壓、長度標識等。
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.
執行標準Executive standard
IEC 60092-353 ——設計Design
I EC 60228 ——導體Conductor
IEC 60092-351 ——絕緣Insulation
IEC 60092-359 ——護套Sheath
IEC 60332-3-22 ——阻燃Flame Retardant
I EC 60754 ——無鹵Halogen Free
IEC 61034 ——低煙Low Smoke
產品使用特性參數Service property parameter
主要參數Main parameter | 性能指標Performance index |
額定電壓 Rated voltage | 0.6/1kV |
導體長期允許***高工作溫度 Long time permissible maximum operating temperature | 95℃ |
電纜***小彎曲半徑 Cable minimum bending radius | ≥6D (D:電纜外徑，mm) ≥6D (D: cable diameter, mm) |
交流電壓試驗 A.C. voltage test | 3.5kV/5min不擊穿 3.5kV/5min without puncture |
基本型號及名稱Type and description
型號Type | 產品名稱Description |
CSS/SA | 硅橡膠絕緣硅橡膠護套船用電力電纜，SA型 Silicone rubber insulated silicone rubber sheathed shipboard power cable, SA type |
CSSR/SA | 硅橡膠絕緣硅橡膠護套船用軟電力電纜，SA型 Silicone rubber insulated silicone rubber sheathed flexible shipboard power cable, SA type |
CSPJ/SC | 硅橡膠絕緣聚烯烴護套船用電力電纜，sc型 Silicone rubber insulated XLPO(SHF2) sheathed low-smoke halogen-free flame-retardant shipboard power cable, SC type |
CSPJR/SC | 硅橡膠絕緣聚烯烴護套船用軟電力電纜，SC型 Silicone rubber insulated XLPO(SHF2) sheathed low-smoke halogen-free flame-retardant flexible shipboard power cable, SC type |
